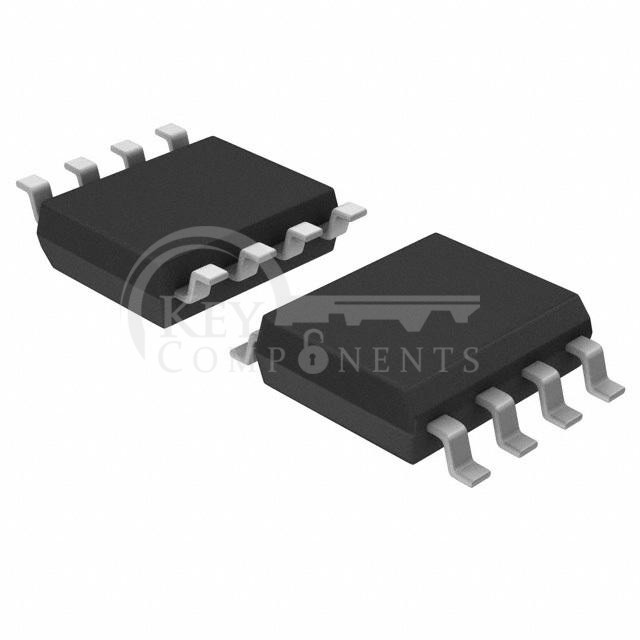

UCC3805DTR

Manufacturer Part	UCC3805DTR
Manufacturer	Texas Instruments
Description	IC REG CTRLR MULT TOPOLOGY 8SOIC
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Output Type:	Transistor Driver
Function:	Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Buck, Boost, Flyback, Forward Converter
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	3.6V ~ 12V
Frequency - Switching:	31kHz
Duty Cycle (Max):	49%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Frequency Control
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC
