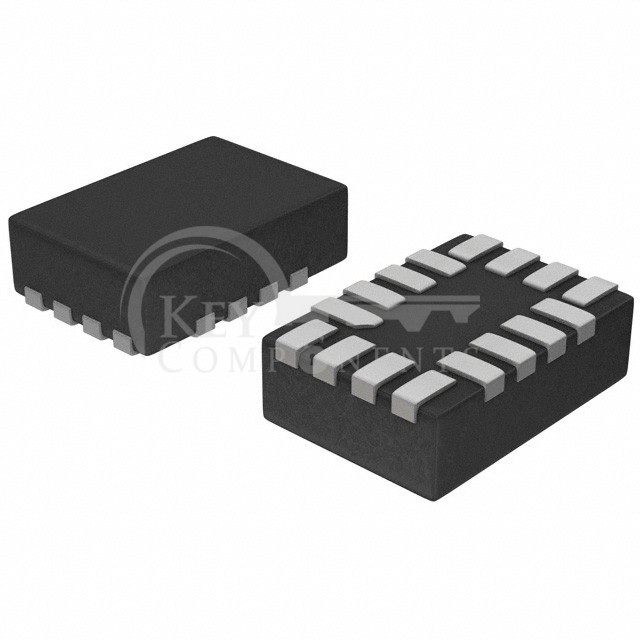

NLAS3799BMNR2G

NLAS3799BMNR2G

Manufacturer Part NLAS3799BMNR2G
Manufacturer onsemi
Description IC SWITCH DUAL DPDT 16WQFN
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Switch Circuit:DPDT
Multiplexer/Demultiplexer Circuit:2:2
Number of Circuits:2
On-State Resistance (Max):400mOhm
Channel-to-Channel Matching (ΔRon):50mOhm (Max)
Voltage - Supply, Single (V+):1.65V ~ 4.5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):50ns, 30ns
-3db Bandwidth:19MHz
Charge Injection:51pC
Channel Capacitance (CS(off), CD(off)):3pF
Current - Leakage (IS(off)) (Max):500nA
Crosstalk:-90dB @ 100kHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-WFQFN
Supplier Device Package:16-WQFN (1.8x2.6)
