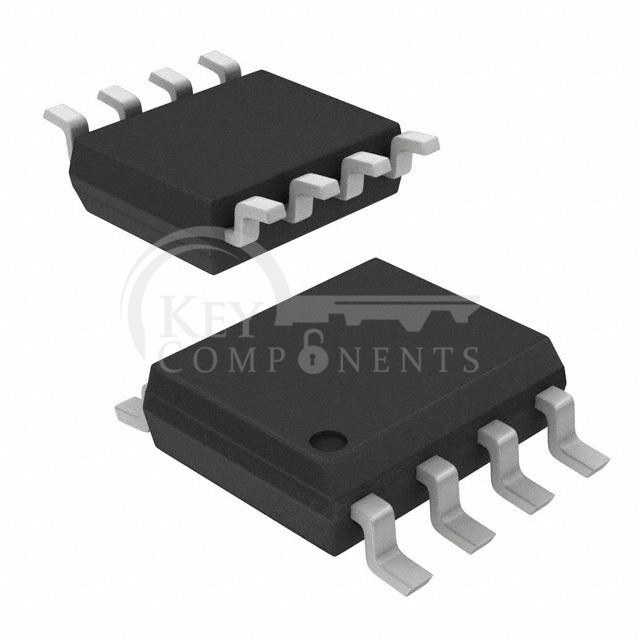

FDFS2P103A

Manufacturer Part	FDFS2P103A
Manufacturer	Fairchild Semiconductor
Description	MOSFET P-CH 30V 5.3A 8SOIC
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	5.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	59mOhm @ 5.3A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	8 nC @ 5 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	535 pF @ 15 V
FET Feature:	Schottky Diode (Isolated)
Power Dissipation (Max):	900mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SOIC
Package / Case:	8-SOIC (0.154", 3.90mm Width)
