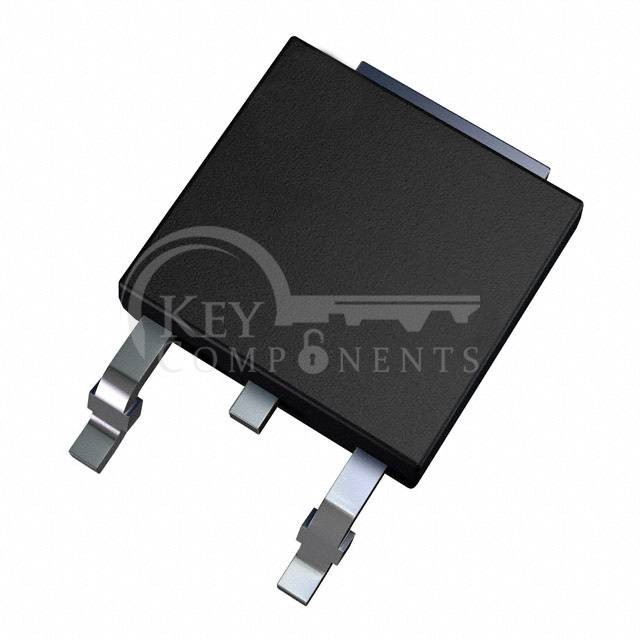

FDD6796A

FDD6796A

Manufacturer Part FDD6796A
Manufacturer Fairchild Semiconductor
Description MOSFET N-CH 25V 20A/40A TO252
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):25 V
Current - Continuous Drain (Id) @ 25°C:20A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On):-
Rds On (Max) @ Id, Vgs:5.7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:34 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1780 pF @ 13 V
FET Feature:-
Power Dissipation (Max):3.7W (Ta), 42W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:TO-252, (D-Pak)
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
